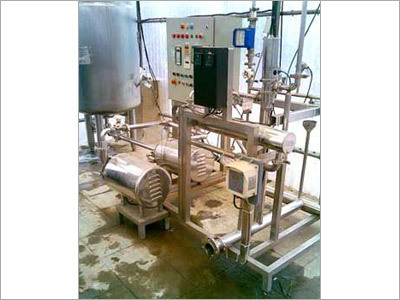

Purified Water Distribution System

Purified Water Distribution System
Purified Water Distribution System
Product Code : MT - WDS - 01
Product Description

Banking upon the caliber of our adept manpower, we have become a pioneer manufacturer, trader, supplier and exporter of a huge gamut of Water Distribution System. Our offered system is designed and fabricated using of Heavy duty, polyvinyl chloride pipe / GI pipe. Our offered water distribution system is meant for the efficient distribution of water in commercial as well as domestic sectors. Our range of Water Distribution System is best known for their corrosion resistance and durability.

Features :
The Purified Water Distribution System, manufactured by Mahir Technologies , is an all-inclusive range, of highly durable quality and low on costs. The distribution system consists of storage tanks, sanitary type centrifugal pumps, tubes, heat exchangers and valves of varied types and high quality instruments.

Storage Tanks:

  • Jacketed Storage Tanks. (with electrical heater or steam heated)
  • Wetted parts in SS316L and non contact parts in SS 304

Tubes:

  • Seamless or Semi seamless (Laser welded)
  • SS 316L tubes with internal electro polished of Ra <0.4
  • Externally Buffed
  • TG PRO, RATH GIBSON and Many other Makes

Heat Exchangers:

  • Hot type (with steam or hot water)
  • Cold type (with cooling tower water of chilled water)

Valves:

  • Manually operated
  • Air or Electrically operated (Automatic / Actuated valves)
  • All valves will be of Avcon or Saunders Make
  • Internal finish of 0.2 0.Ra
  • External finish 0.8Ra
  • Valve Body of ASTM A315CF8M (SS 316L)

Bonnet:

  • ASTM A315CF8 (SS 304)
  • EPDM or Ptfe Diaphragm
  • Plastic GF30% Hand wheel

Flow Diversion Valves (FDV):

  • Manually operated
  • Air or Electrically operated (Automatic / Actuated valves)
  • FDV will be of Avcon Make
  • Valve Body SS316 L Block type

Application Area :

  • Used in Pharma and Food Industries
